BE-5038 MAIN FEATURES



•TRUE/ANTENNA DIVERSITY WIRELESS SYSTEM

•AUTO/HANDLE SEARCHING FUNCTION,

•SHOW THE GROUP AND FREQUENCY

•PLL PILOT CIRCUIT DESIGN, LOCK ON/OFF DISPLAY FUNCTION

•MULTIFUNCTION LCD DISPLAY,

•SHOW THE BATTERY STATUS AND MUTE FUNCTION.

•DYNAMIC CARTRIDGE, BRIGHT AND CLEAR SOUND



TECHNOLOGY DATA

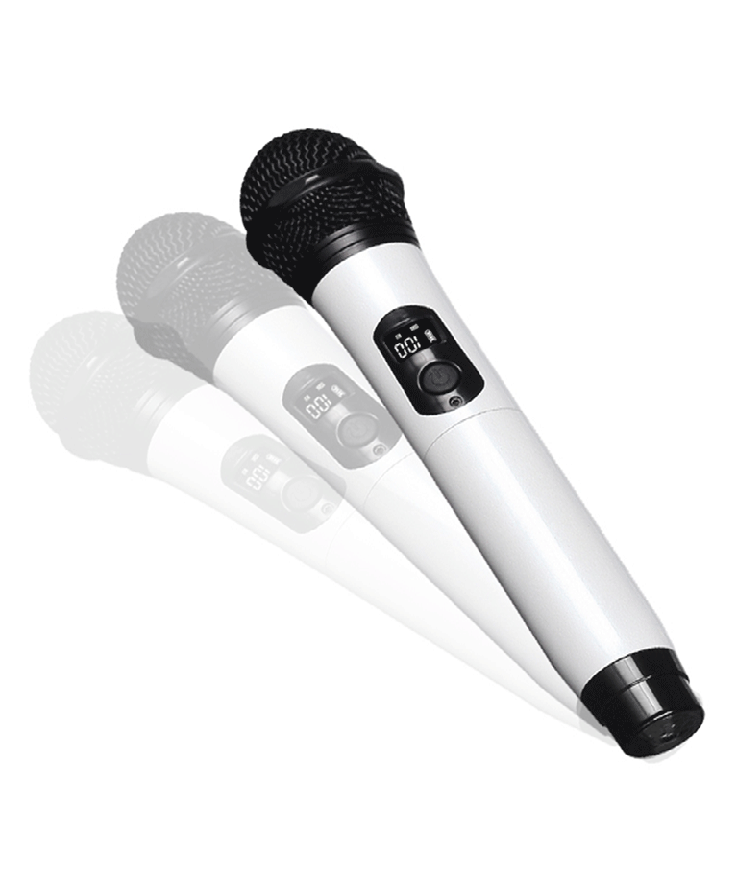

TRANSMITTER: H8

FREQUENCY RANGE: 500MHZ~960MHZ

FREQUENCY PREPARATION: PLL

FREQUENCY STABILITY: ±0.005%

IMAGE INTERFERE RATE: ≥102DB

FREQUENCY RESPONSE: 30HZ~18KHZ

S/N RATIO: ＜-60DBC

RF OUTPUT: 10MW

CURRENT: ＜100MA

BATTERY: AA 1.5VX2

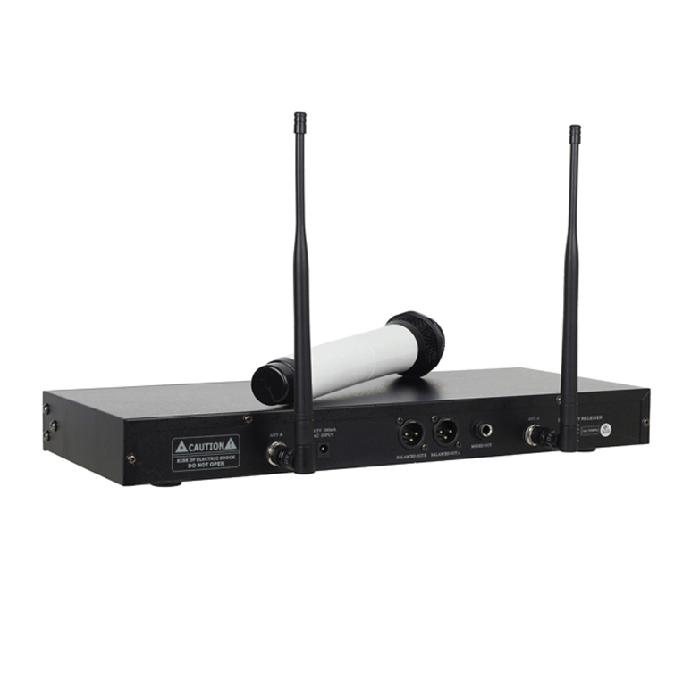

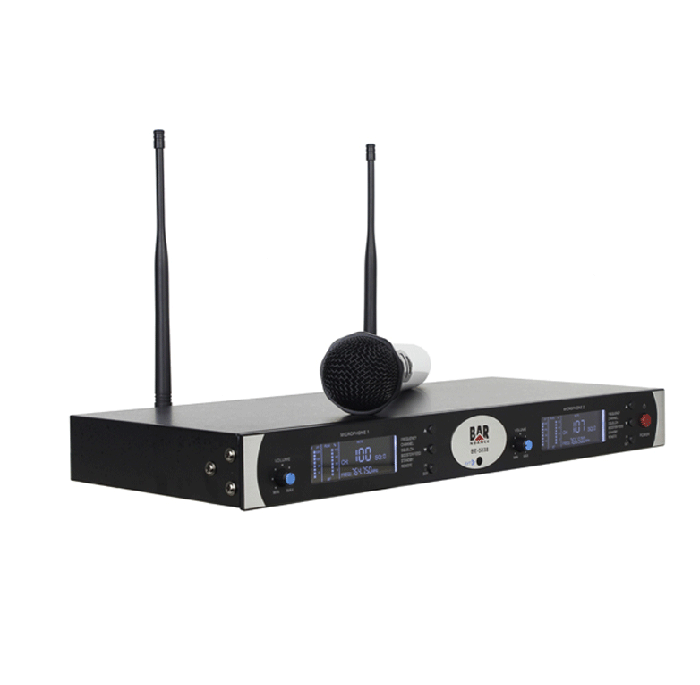

RECEIVER: BE-5038

FREQUENCY RANGE: 500MHZ~960MHZ

FREQUENCY STABILITY: ±0.005%

IMAGE INTERFERE RATE: ＞80DB

S/N RATIO: ＞105DB(1KHZ)

SENSITIVITY: -107DBM

AUDIO OUTPUT IMPEDANCE: 600Ω

AUDIO OUTPUT LEVEL: -12DB

POWER SUPPLY: DC/12--18.5V 500MA
