BE-5018 MAIN FEATURES
- TRUE DIVERSITY WIRELESS SYSTEM
- AUTO/HANDLE SEARCHING FUNCTION,
- SHOW THE GROUP AND FREQUENCY
- PLL PILOT CIRCUIT DESIGN, LOCK ON/OFF DISPLAY FUNCTION
- MULTIFUNCTION LCD DISPLAY,
- SHOW THE BATTERY STATUS AND MUTE FUNCTION.
- DYNAMIC CARTRIDGE, BRIGHT AND CLEAR SOUND
TECHNOLOGY DATA

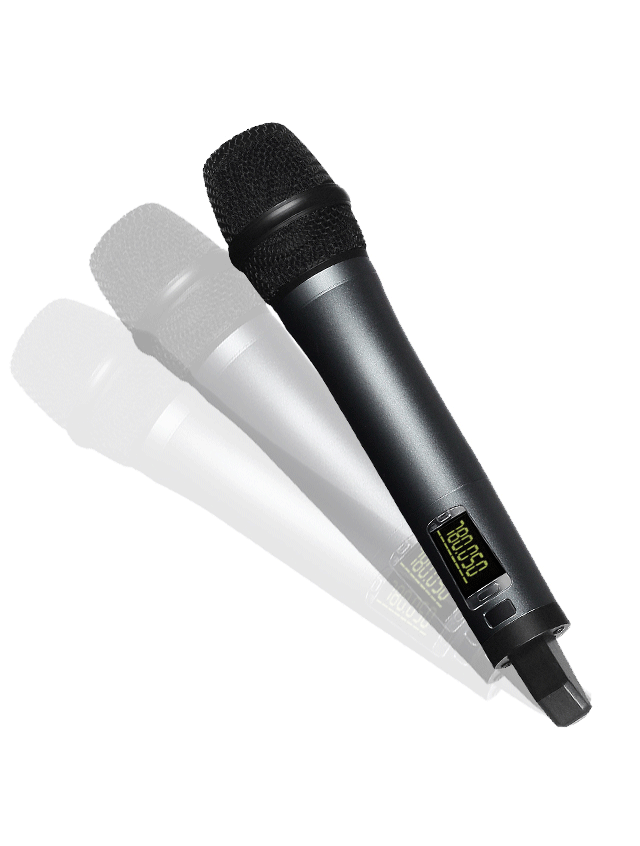

TRANSMITTER: H30
FREQUENCY RANGE: 500MHZ~960MHZ
FREQUENCY PREPARATION: PLL
FREQUENCY STABILITY: ±0.005%
IMAGE INTERFERE RATE: ≥102DB
FREQUENCY RESPONSE: 30HZ~18KHZ
S/N RATIO: ＜-60DBC
RF OUTPUT: 10MW
CURRENT: ＜100MA
BATTERY: AA 1.5VX2

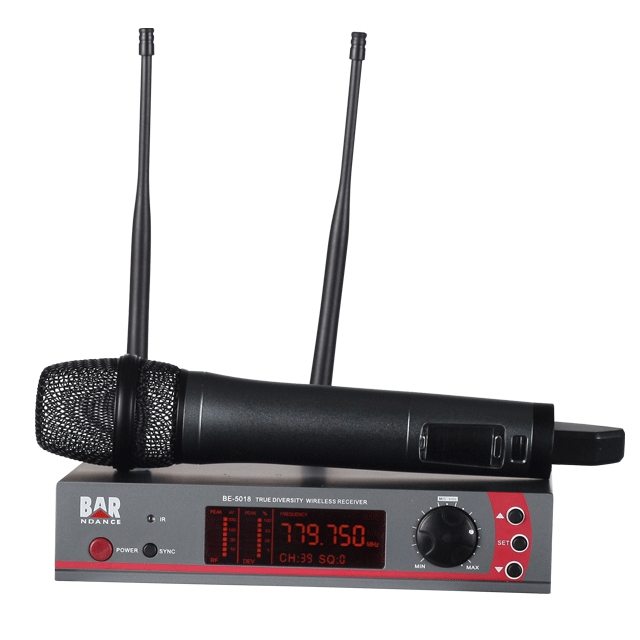

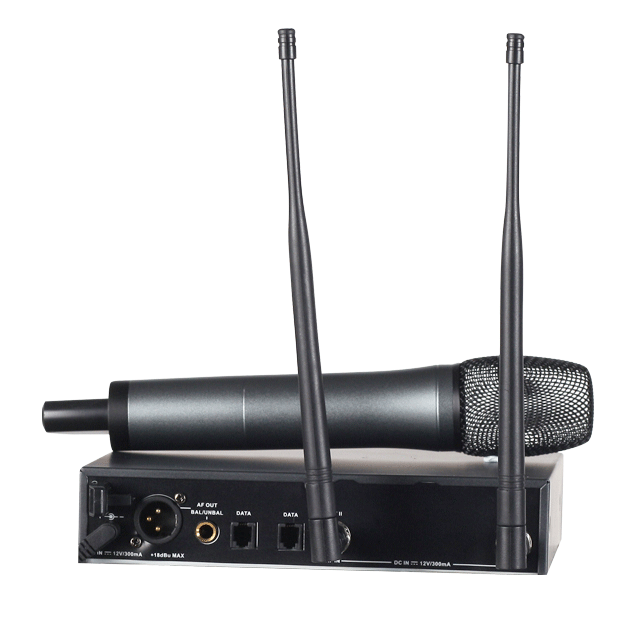

RECEIVER: BE-5018
FREQUENCY RANGE: 500MHZ~960MHZ
FREQUENCY STABILITY: ±0.005%
IMAGE INTERFERE RATE: ＞80DB
S/N RATIO: ＞105DB(1KHZ)
SENSITIVITY: -107DBM
AUDIO OUTPUT IMPEDANCE: 600Ω
AUDIO OUTPUT LEVEL: -12DB
POWER SUPPLY: DC/12--18.5V 500MA
|
