TECHNOLOGY DATA

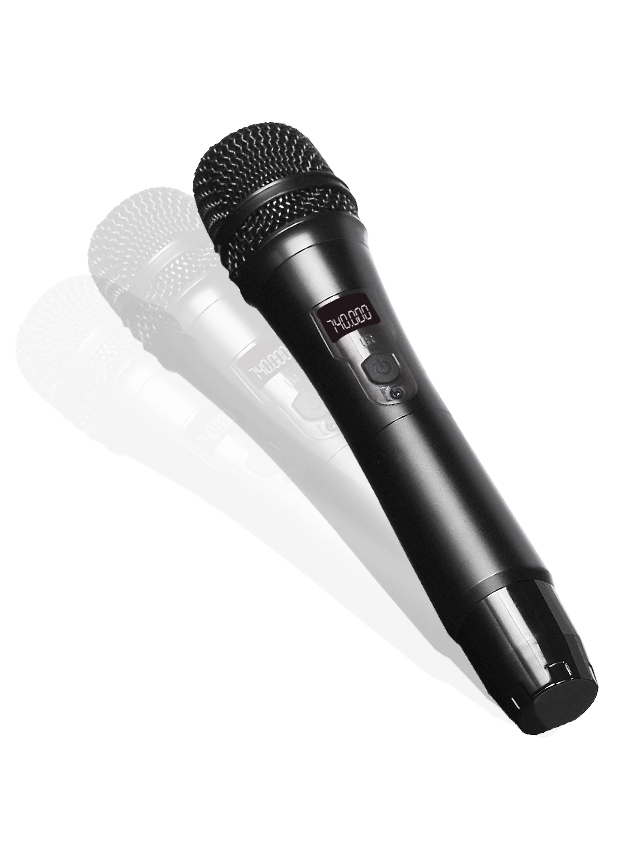

TRANSMITTER：H13
FREQUENCY RANGE：500MHZ~960MHZ
FREQUENCY PREPARATION：PLL
FREQUENCY STABILITY：±0.005%
IMAGE INTERFERE RATE：≥102DB
FREQUENCY RESPONSE：30HZ~18KHZ
S/N RATIO：＜-60DBC
RF OUTPUT：10MW
CURRENT：＜100MA
BATTERY：AA 1.5VX2

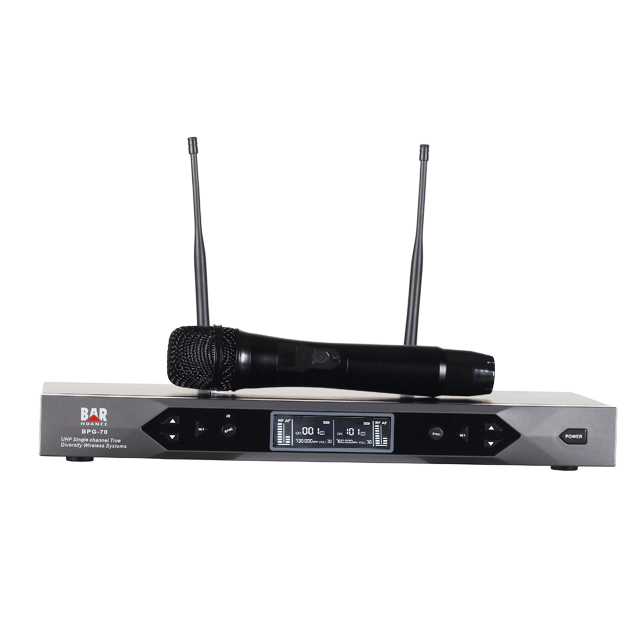

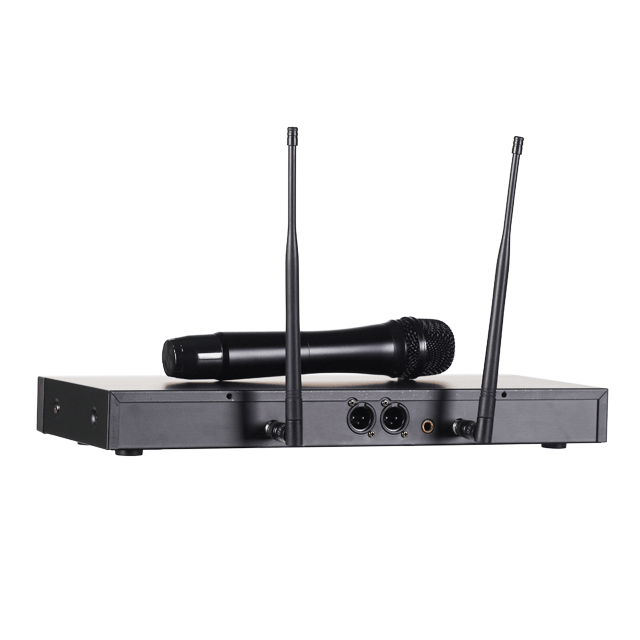

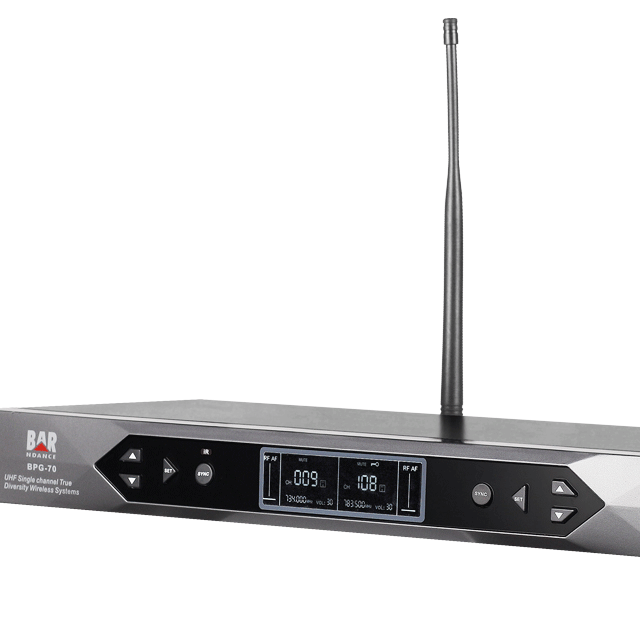

RECEIVER：BPG-70
FREQUENCY RANGE：500MHZ~960MHZ
FREQUENCY STABILITY：±0.005%
IMAGE INTERFERE RATE：＞80DB
S/N RATIO：＞105DB(1KHZ)
SENSITIVITY：-107DBM
AUDIO OUTPUT LEVEL：-12DB
POWER SUPPLY：DC/12--18.5V 500MA
